Small Hydropower
DLLD Power provides a complete set of qualified equipment for global micro and small hydropower plant up to 1000KW capacity, especially run-of-river hydropower system. Our business ecosystem with DLLD as the core, integrated companies distributed all over the world, provides hydraulic steel structures such as Penstock, Main inlet valve, Francis turbine, Turgo turbine, Pelton turbine, Kaplan turbine, Tubular turbine, generators, speed governors, auxiliary equipment (including oil, water and air system; guide pads, upper guide pads, lower guide pads, thrust pads, etc.), primary electrical equipment (power transformers, switchgear and GIS equipment) and secondary equipment (computerized supervisory and control, protection, dam and geotechnical safety monitoring, hydrological telemetry and reservoir dispatch, excitation, CCTV and DC system)
Sample Case 1:

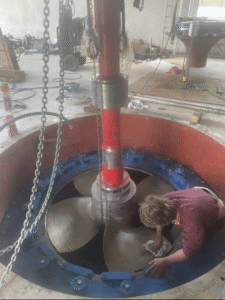

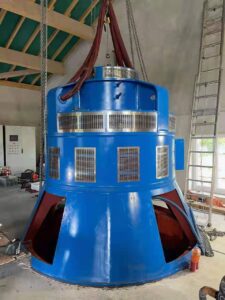

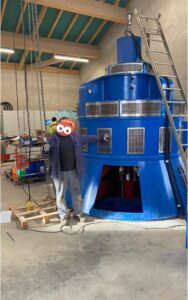

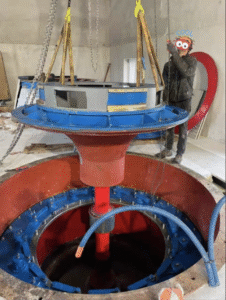

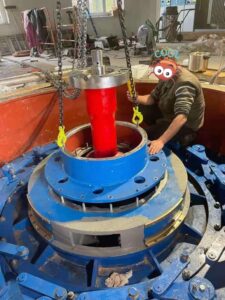

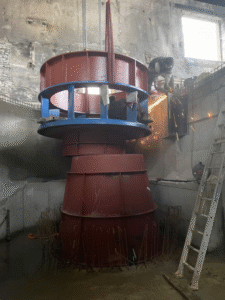

Integrated Kaplan turbine generator unit
Design head: 3.9m
Deisig Flow: 9.5m3/s
Design capacity: 2*250KW
Turbine selection: ZZ709-LH-160
Generator selection: SF250-32/1730
Remark: Regulated runner blades
Location: France
![截屏2023-03-17 09.57.54](https://dlldpower.com/wp-content/uploads/2023/03/截屏2023-03-17-09.57.54-188x300.png)
![截屏2023-03-17 09.57.39](https://dlldpower.com/wp-content/uploads/2023/03/截屏2023-03-17-09.57.39-225x300.png)
![截屏2023-03-17 09.57.06](https://dlldpower.com/wp-content/uploads/2023/03/截屏2023-03-17-09.57.06-225x300.png)
![截屏2023-03-17 09.56.51](https://dlldpower.com/wp-content/uploads/2023/03/截屏2023-03-17-09.56.51-225x300.png)
![截屏2023-03-17 09.56.18](https://dlldpower.com/wp-content/uploads/2023/03/截屏2023-03-17-09.56.18-224x300.png)
![截屏2023-03-17 09.56.04](https://dlldpower.com/wp-content/uploads/2023/03/截屏2023-03-17-09.56.04-225x300.png)
Sample Case 2:
Integrated Pelton turbine generator unit
Design head: 135m
Design Flow: 0.333m3/s
Design capacity: 1*352KW
Turbine selection: CJA475-L-46/4*5
Generator selection: SF350-6/850
Remark: 04 nozzles
![IMG_1343](https://dlldpower.com/wp-content/uploads/2023/03/IMG_1343-1.jpg)
![IMG_1344](https://dlldpower.com/wp-content/uploads/2023/03/IMG_1344.jpg)
![Vertical Pelton turbine generator unit](https://dlldpower.com/wp-content/uploads/2023/03/Vertical-Pelton-turbine-generator-unit-1.png)
![IMG_1345](https://dlldpower.com/wp-content/uploads/2023/03/IMG_1345-1.jpg)
![IMG_1991](https://dlldpower.com/wp-content/uploads/2023/03/IMG_1991-1.jpg)
![IMG_1994](https://dlldpower.com/wp-content/uploads/2023/03/IMG_1994-1.jpg)
![照片 187](https://dlldpower.com/wp-content/uploads/2023/03/照片-187-1.jpg)
![DSC02471](https://dlldpower.com/wp-content/uploads/2023/03/DSC02471-1.jpg)
Sample Case 3:
Integrated Francis turbine generator unit
Design head: 35m
Design Flow: 1.7m3/s
Design capacity: 1*485KW
Turbine selection: HL835C-L-55
Generator selection: SF500-6/850
Remark: Vertical Francis
![Vertical Francis turbine generator integrated unit](https://dlldpower.com/wp-content/uploads/2023/03/Vertical-Francis-turbine-generator-integrated-unit-1.jpg)
![IMG_2120](https://dlldpower.com/wp-content/uploads/2023/03/IMG_2120-1.jpg)
![Vertical-type-Francis-turbine](https://dlldpower.com/wp-content/uploads/2023/02/Vertical-type-Francis-turbine.jpeg)
![Vertical Francis turbine generator integrated unit](https://dlldpower.com/wp-content/uploads/2023/03/Vertical-Francis-turbine-generator-integrated-unit.jpeg)
![WechatIMG201](https://dlldpower.com/wp-content/uploads/2023/03/WechatIMG201.jpeg)
